Siglent is one of the leading manufacturers of measuring technology and has been manufacturing a comprehensive portfolio of measuring devices for laboratory use since 2002. The company meets high standards of reliability and quality. Pertech maintains local stock and service to ensure quick delivery and available service.
SIGLENT digital oscilloscopes provide the perfect balance between features and price. With bandwidths from 50 MHz to 2 GHz, low noise vertical scales down to 500 uV/div, and features like Eye diagram / Jitter analysis, serial decoding and MSO capabilities, SIGLENT will quickly become your scope of choice.
Event frequency indicated by color temperature. “Hot” colors (red) identify frequent events while “cool” (blue) colors are reserved for events that occur less often.
Quickly add one of over 30 automatic measurements like peak voltage, frequency, and more
Edge, Slope, Pulse, Window, Runt, Interval Dropout, Pattern, Video (HDTV supported), and serial trigger modes on many of our digital oscilloscopes
SIGLENT’s function generators / arbitrary waveform generators use advanced Digital Frequency Synthesis (DDS) technology to produce high quality standard function and arbitrary waveform signals. They also provide a wide range of analog and digital modulation functions.
No need for external adapters and cabling. Quickly combine CH1 and CH2 outputs internally (Most SDG models)
Lock phases for greater inter-channel phase control. Independent mode smooths parameter transitions (Most SDG models)
Independent channels with full specifications for two times the instrument (Most SDG models)
SIGLENT’s SDM3000 Series Digital Multimeters are dual-display multimeters offering 4½, 5½ and 6½-digit resolution with up to 35 PPM DCV accuracy and a powerful feature set at an excellent price.
Digital multimeters observe measurements vs. time
Quickly obtain standard deviation and more with DMMs
Multi-channel scanner models available (SDM3055 and SDM3065X with SC1016 option only)
Siglent’s innovative spectrum analyzers provide reliable measurement precision and a wide range of RF measurement functions. They incorporate all-digital IF technology and have frequency ranges from 9 kHz to 7.5 GHz for use for almost any application.
Observe and compare multiple signals on the same display.
View time varying signals, observe drift, and more using the convenient color temperature waterfall (Option AMK-SSA3000X)
All SSAs have the tracking generator hardware installed for easy component/filter testing
Product Overview
SSG6000A meet the stringent requirements of microwave and millimeter wave testing with reliable performance and provide another choice in size, speed and cost, especially suitable for applications that pursue program efficiency but have limited testing budget and space.
SSG6000A Series RF Signal Generator supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is not only an ideal local oscillator and clock source, but also a high-performance analog signal source. It is suitable for various application scenarios such as R&D and production. SIGLENT provides a total solution including proven reliability and standard 3 years warranty plus pre-sale and post-sale support.
SIGLENT Technology is a company specializes in development and manufacturing of test and measurement equipment. The company was founded in 2002, with European headquarters located in Germany. The company’s main product line includes digital oscilloscopes, function and arbitrary waveform generators, digital multi-meters, DC power supplies, spectrum analyzers, spectrum & network analyzers, isolated handheld oscilloscopes.

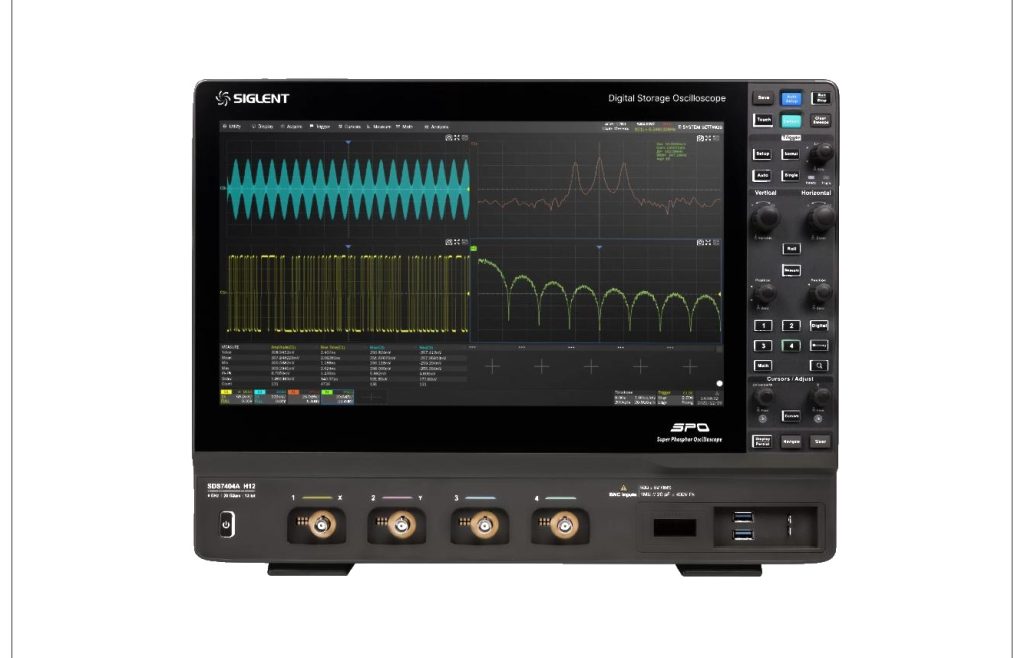

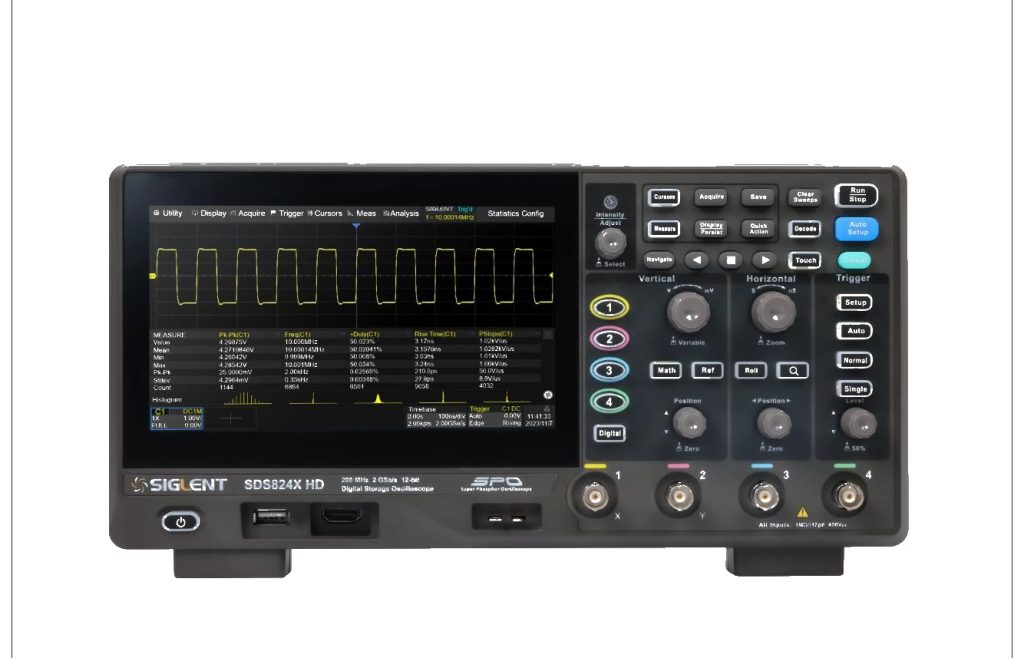

Digital oscilloscopes
SIGLENT oscilloscopes offer significant value over other available solutions. These devices provide bandwidths from 50 MHz to 2 GHz, low noise vertical scales down to 500 uV/div. Other important features include serial decoding, sequence function, Eye diagram and Jitter analysis and MSO capabilities. The module numbers include:
SDS6000A

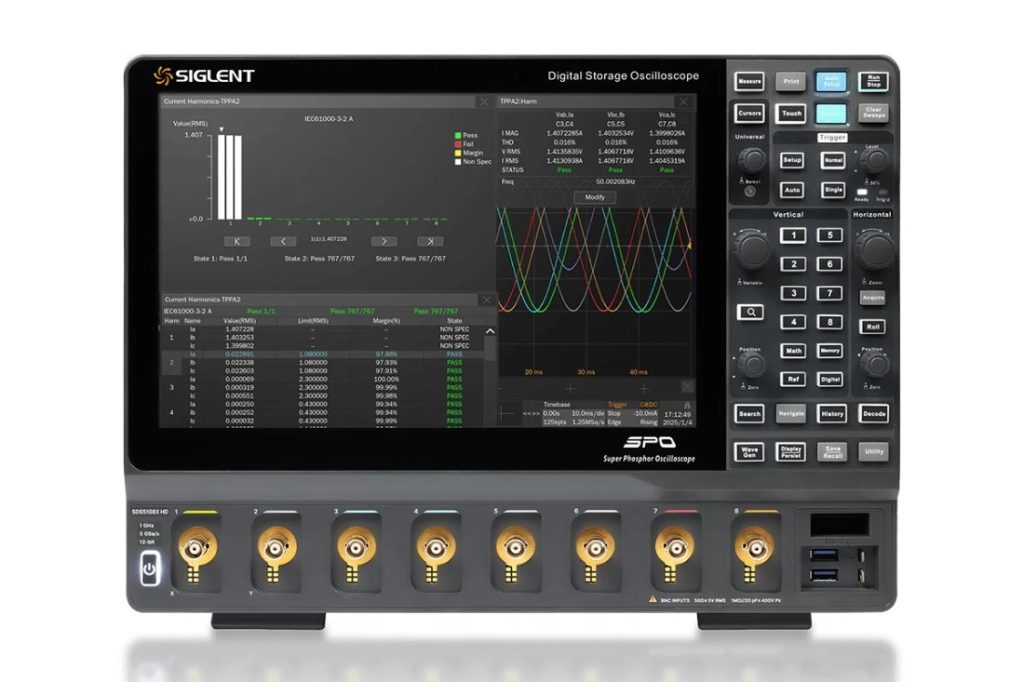

SDS5000X Series
SDS2000X HD Series
SDS2000X Plus Series
SDS2000X-E Series
SDS1000X-E
SDS 1104X-U
SDS1000CML+
SDS1000DL+
Spectrum Analyzers
Siglent’s spectrum analyzers with a frequency range of 9 KHz to 1.5/2.1/3.2/7.5 GHz, are light weight, small size, and easy to use user interface. Model number SSA3000s represents an easy to read display, powerful and reliable automatic measurements. Once you compare the features and prices to other available solutions, the choice of Siglent will be obvious.
Hardware is just that without software to support it. as such, Siglent’s spectrum analyzers include EasySpectrum software, offering a remote control interface for SIGLENT SSA3000 Series of spectrum analyzers. It can be used to facilitate data collection, remote monitoring, and pre-compliance test sequencing. Module numbers include:
SSA3000X-R
SSA3000X Plus
SSA3000X
SVA1000X
Applications include research and development, education, production, maintenance, and pre-compliance. Local stock and service is available.
Waveform Generators
SIGLENT’s Arbitrary Waveform Generators offer models with up to 1 GHz bandwidth, 5 GSa/s sample rate, 16-bit vertical resolution and 512 Mpts of memory depth. Common analog and digital modulations, sweep and burst are provided to support complex signal generation. Proprietary TrueArb & EasyPulse technology included in some of the models helps to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the X-series and A-series provide true dual channels with internal waveform combination, flexible phase/channel control and copy/coupling/tracking between channels. The A-series are equipped with differential outputs, digital bus kits, sequence function and 48 V output range. These features enable SIGLENT’s Arbitrary Waveform Generators to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.
Module numbers include:
SDG7000A
SDG6000X
SDG2000X
SDG1000X
SDG800
Digital Multimeters
SIGLENT’s SDM instruments are dual display digital desktop multimeters that provide a rich and powerful feature set at an excellent price. This DMM family is well suited for production testing, R&D and certification work, as well as any place where an accurate and powerful full-function DMM is needed.
The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Equipped with a 4.3-inch TFT-LCD true color screen with 480 * 272 resolution for easy viewing.
The SDMs also feature numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including measurement statistics. SIGLENTs SDMs are accurate, reliable, and dependable.
Module numbers include:
SDM3065X

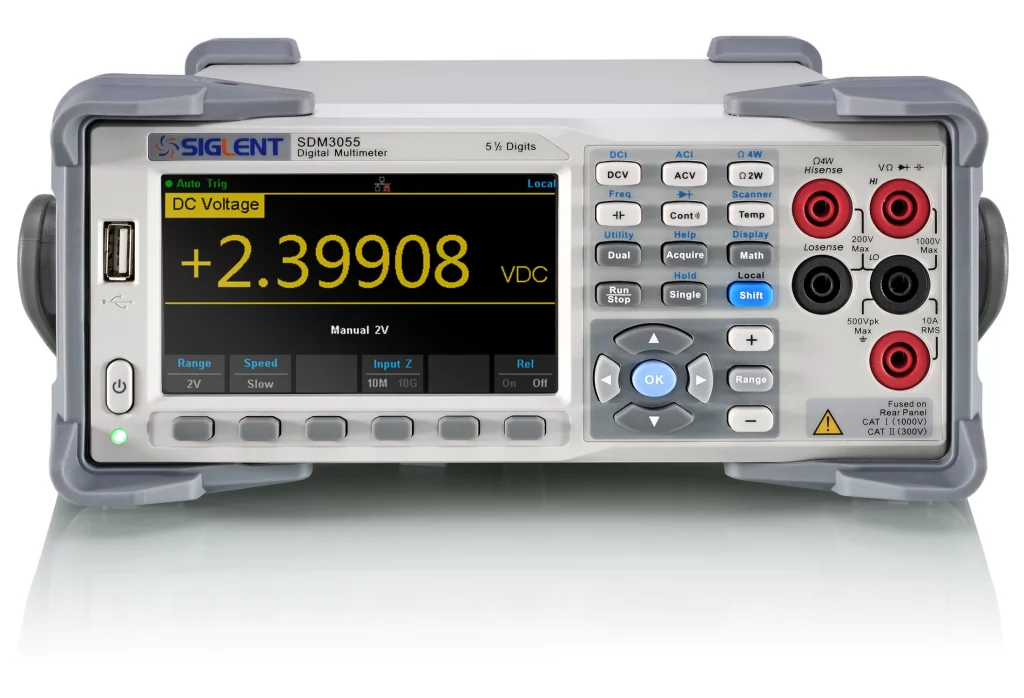

SDM3055
SDM3045X
