SDG2000X Series Function/Arbitrary Waveform Generators

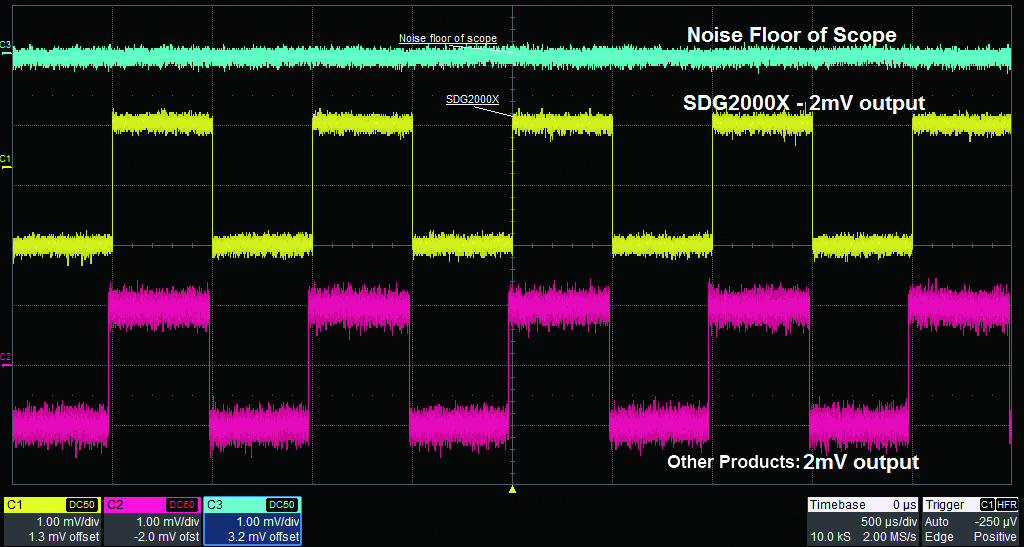

Dual-channel, 120 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost

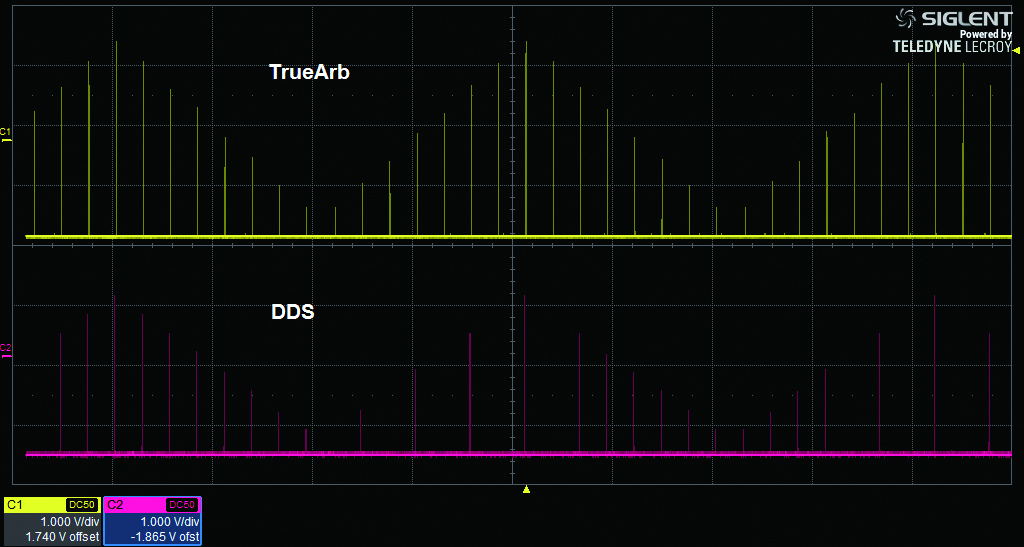

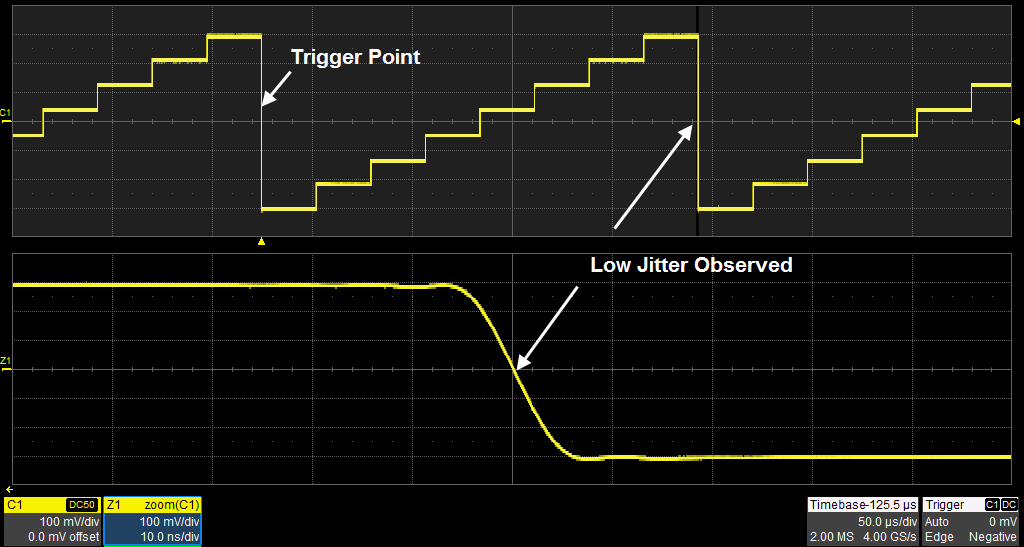

Innovative TrueArb technology supports user-defined waveforms from 8 to 8 Mpts and user-defined sample rate from 1 μSa/s to 75 MSa/s
Large Touch Screen Display

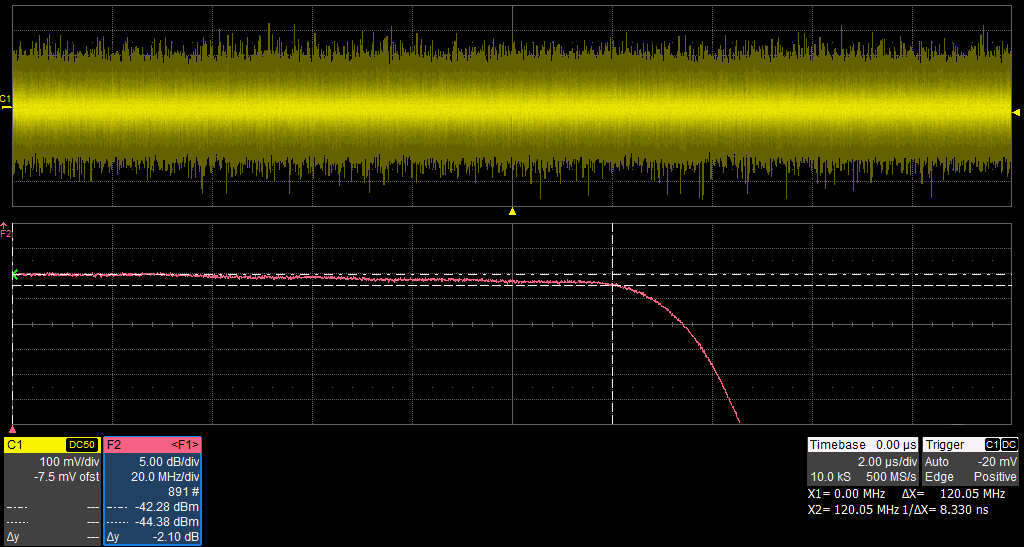

Easily combine waveforms through a single output, including noise and arbitrary waveforms

Product Overview

SIGLENT’s SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120 MHz maximum bandwidth, 1.2 GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X waveform generators can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

	Max Output Frequency	Max Sampling Rate	Vertical Resolution	Waveform Length	Channels
SDG2122X	120 MHz	1.2 GSa/s	16-bit	8 pts to 8 Mpts	2
SDG2082X	80 MHz	1.2 GSa/s	16-bit	8 pts to 8 Mpts	2
SDG2042X	40 MHz	1.2 GSa/s	16-bit	8 pts to 8 Mpts	2

Key Features

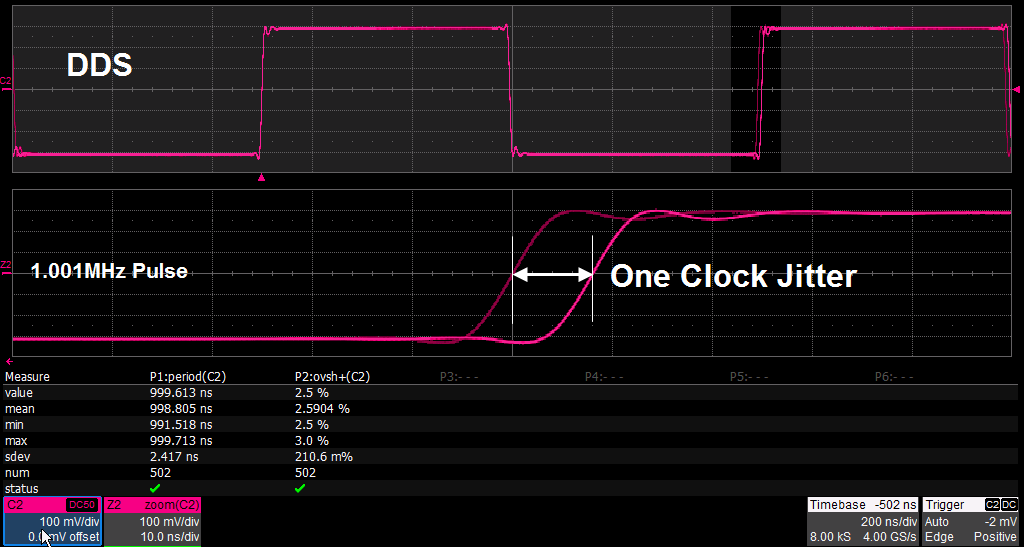

Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely
high precision in pulse width and rise/fall times adjustment
Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM
Sweep and Burst function, Harmonics mode supported
High precision Frequency Counter
Standard interfaces: USB Device, USB Host, LAN (VXI-11), and GPIB (optional)
4.3” touchscreen display for easier operation
