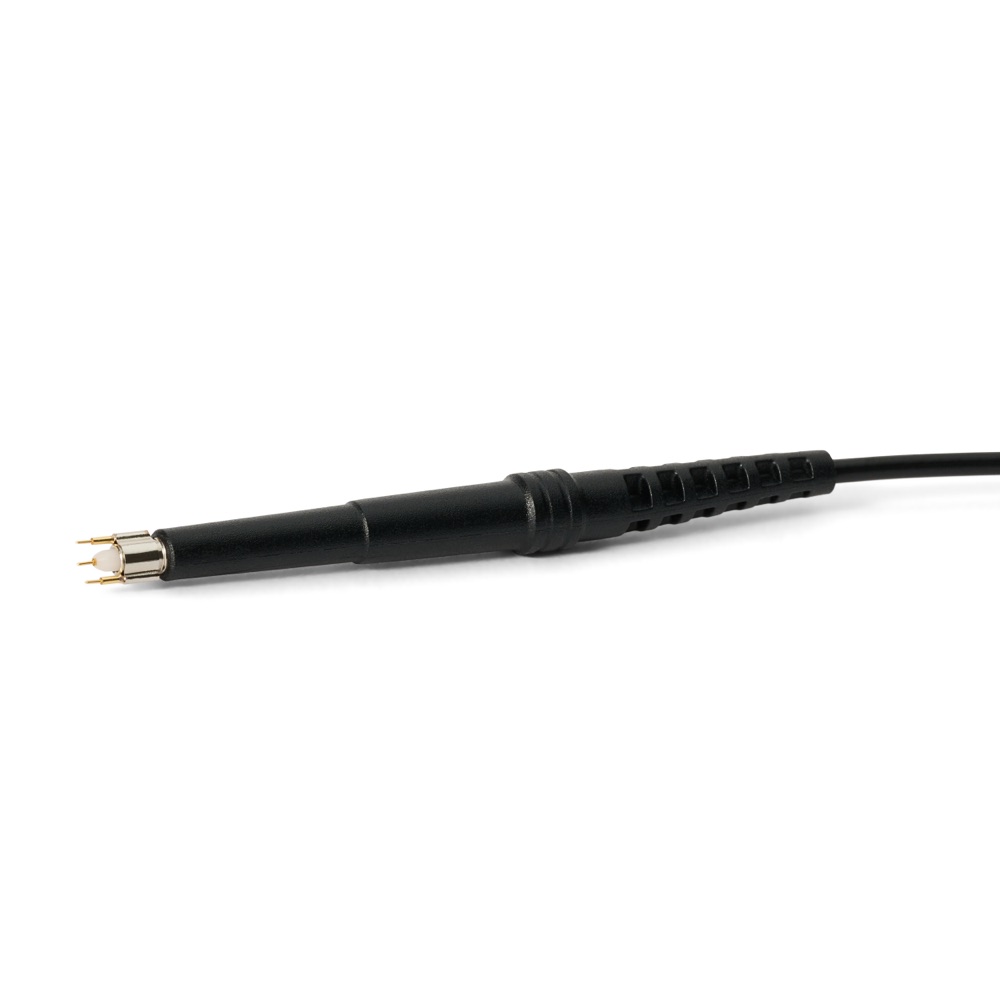

The SQG30-AC is a 3 GHz AC-coupled, low-impedance (500 ohm) 10:1 passive probe for instruments with a 50 ohm input – oscilloscopes, sampling scopes, network, spectrum and modulation analyzers, receivers and power meters. Part of the Sensepeek SQG series of high-frequency handsfree probes (1.5 – 6.0 GHz), it mounts on the PCBite base plate for stable handsfree measurements and is insulated for handheld use. AC coupling makes it a good fit for DC-biased high-speed data (USB, HDMI, SATA, ECL/PECL) and supply ripple and noise. Supplied in a storage case.
Part number: PCBITE-7010
| Part number | PCBITE-7010 |
|---|---|
| Bandwidth | 3.0 GHz |
| Coupling | AC |
| Attenuation | 10:1 passive |
| Instrument input impedance | 50 ohm |
| Probe tip impedance | 500 ohm |
| Tip capacitance | < 1.31 pF |
| Usable data rate | > 6 Gbps |
| Flat response | +/-0.5 dB, 1 kHz to 2.6 GHz |
| Ground | Up to 2 GHz with single GND; above 3 GHz with dual GND clip |
| Ground pitch | Dual needle 2.3 mm; single 6.5 mm |
| EAN | 7350145660489 |
