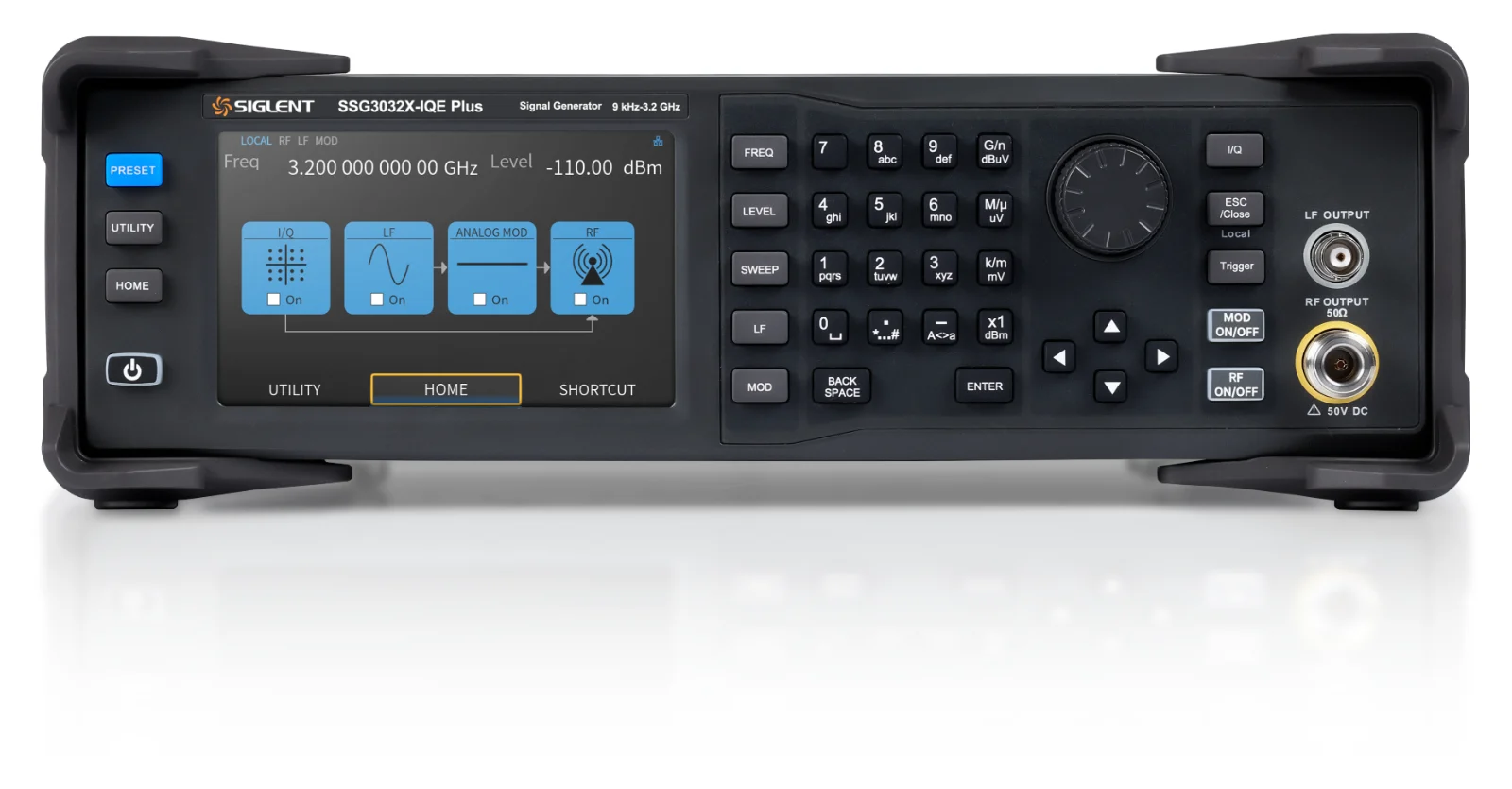

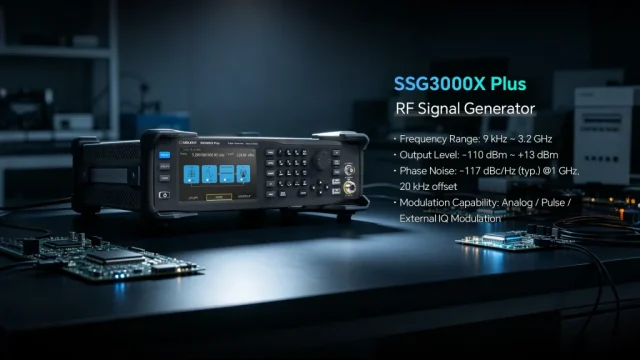

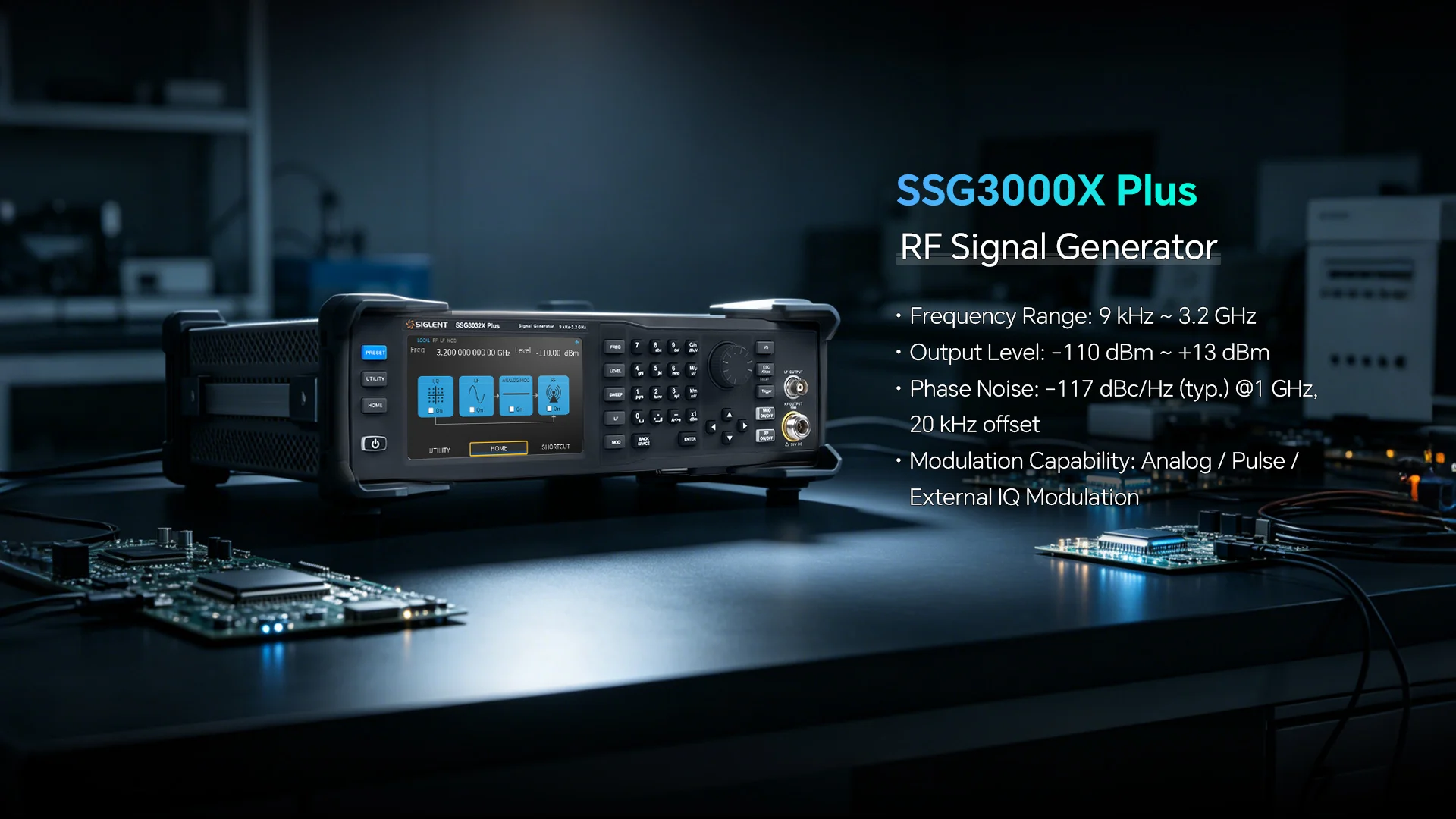

SSG3000X Plus Series RF Signal Generator
New — now available from Pertech. The SSG3000X Plus is Siglent’s upgraded SSG3000X, with optimised hardware and software for a cleaner signal and better pulse fidelity, at the same price as the previous generation.
- Frequency range 9 kHz – 2.1 GHz / 3.2 GHz
- Level setting range: −110 dBm ~ +20 dBm (performance range up to +13 dBm)
- Phase Noise: −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.)
- Level accuracy ≤ 0.7 dB (typ.)
- Standard AM/FM/PM modulation and pulse modulation
- IQ modulation with 200 MHz RF bandwidth (‑IQE models)
- Pulse train generator (option)
Product Overview
The SIGLENT SSG3000X Plus series of RF signal generators covers 9 kHz to 2.1 GHz or 3.2 GHz. They provide standard AM, FM and PM analog modulation as well as pulse modulation and an optional pulse train generator. On the ‑IQE models, combine the generator with a baseband source such as the SIGLENT SDG6000X to produce IQ‑modulated signals such as QPSK and 16QAM, with EVM down to 0.7%.
Compared with the SSG3000X, the Plus generation brings a cleaner signal output and improved pulse fidelity, with wideband noise typically better than −153 dBc at a 40 MHz offset and a pulse on/off ratio of at least 68 dBc. A 5‑inch capacitive touch screen, USB power‑sensor support for closed‑loop level control, and web‑browser remote control make it equally suited to R&D benches, education labs and production test. An optional OCXO (10M_OCXO_L) tightens frequency stability to ±1 ppb.
Pertech represents SIGLENT in Israel. We hold SIGLENT products in stock and provide local pre‑sale and post‑sale support.
Key Specifications
| Model | CW Frequency Range | IQ Mode Range | Phase Noise | I/Q Modulation |
|---|---|---|---|---|
| SSG3021X Plus | 9 kHz – 2.1 GHz | — | −117 dBc/Hz @1 GHz, offset 20 kHz (typ.) | No |
| SSG3032X Plus | 9 kHz – 3.2 GHz | — | −117 dBc/Hz @1 GHz, offset 20 kHz (typ.) | No |
| SSG3021X‑IQE Plus | 9 kHz – 2.1 GHz | 10 MHz – 2.1 GHz | −117 dBc/Hz @1 GHz, offset 20 kHz (typ.) | Yes (external IQ) |
| SSG3032X‑IQE Plus | 9 kHz – 3.2 GHz | 10 MHz – 3.2 GHz | −117 dBc/Hz @1 GHz, offset 20 kHz (typ.) | Yes (external IQ) |
| Parameter | Specification |
|---|---|
| Frequency resolution | 0.01 Hz |
| Level setting range | −110 dBm to +20 dBm (f ≥ 1 MHz); +15 dBm (100 kHz – 1 MHz); +9 dBm (< 100 kHz) |
| Level performance range | −110 dBm to +13 dBm (f ≥ 1 MHz) |
| Amplitude resolution | 0.01 dB |
| Level error | ≤ 0.7 dB, ≤ 0.5 dB typ. (100 kHz – 3.2 GHz, +13 to −50 dBm) |
| SSB phase noise (20 kHz offset) | −121 dBc/Hz @100 MHz, −117 dBc/Hz @1 GHz, −110 dBc/Hz @3 GHz (typ.) |
| Wideband noise (40 MHz offset) | < −148 dBc (typ. −153 dBc), 250 MHz – 2.1 GHz |
| Harmonics / non‑harmonics | < −30 dBc / < −63 dBc (level ≤ +13 dBm) |
| Analog modulation | AM, FM, PM — internal, external or internal + external source |
| Pulse modulation | On/off ratio > 68 dBc (0.25 – 3.2 GHz); rise/fall < 50 ns; width 20 ns – 300 s; single and double pulse |
| Pulse train (option PT) | Up to 2047 pulses, 1 – 65535 repetitions each |
| IQ modulation (‑IQE) | External I/Q inputs, RF bandwidth 200 MHz (typ.); 16QAM EVM ≤ 0.7% (10 MHz – 1.5 GHz) |
| Sweep | Frequency and level step/list sweep, up to 65535 points |
| Frequency reference | Standard < 1 ppm; option 10M_OCXO_L ±1 ppb (0 – 50 °C) |
| RF output | N female, 50 Ω |
| Interfaces | USB Host, USB Device (USB‑TMC), LAN (VXI‑11, Socket, Telnet); GPIB via USB‑GPIB adapter |
| Display | 5‑inch capacitive touch screen, 800 × 480 |
| Dimensions / weight | 338 × 113 × 369 mm; 4.84 kg (with IQ board) |
Key Features
- Frequency up to 2.1 GHz / 3.2 GHz with 0.01 Hz setting resolution
- Level output from −110 dBm to +13 dBm; maximum level up to +20 dBm (typ.)
- Phase noise: −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.)
- Level accuracy ≤ 0.7 dB (typ.)
- AM, FM and PM analog modulation with internal, external or Int+Ext source
- Pulse modulation, on/off ratio ≥ 68 dBc; single and double pulse
- Pulse train generator with up to 2047 pulses (option)
- External IQ modulation with the SDG6000X as the baseband IQ source (‑IQE models)
- USB power meter measurement and closed‑loop level control
- 5 inch TFT capacitive touch screen, mouse and keyboard supported
- Web browser remote control on PC and mobile terminals
- Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI‑11, Socket, Telnet). Optional interface: GPIB, OCXO
Options and Accessories
- SSG3000X Plus‑21BW32 — upgrade 2.1 GHz to 3.2 GHz
- SSG3000X‑IQE Plus‑21BW32 — upgrade 2.1 GHz to 3.2 GHz (with external IQ)
- SSG3000X Plus‑PT — pulse train generator
- 10M_OCXO_L — precision frequency reference
- USB‑GPIB — USB‑GPIB adapter
- SSG‑RMK — rack mount kit
