SQG60-DC – 6.0 GHz Low Impedance 10:1 Passive DC Probe

Sensepeek SQG60-DC - 6.0 GHz Low Impedance 10:1 Passive DC Probe (PCBITE-7013)
description

New

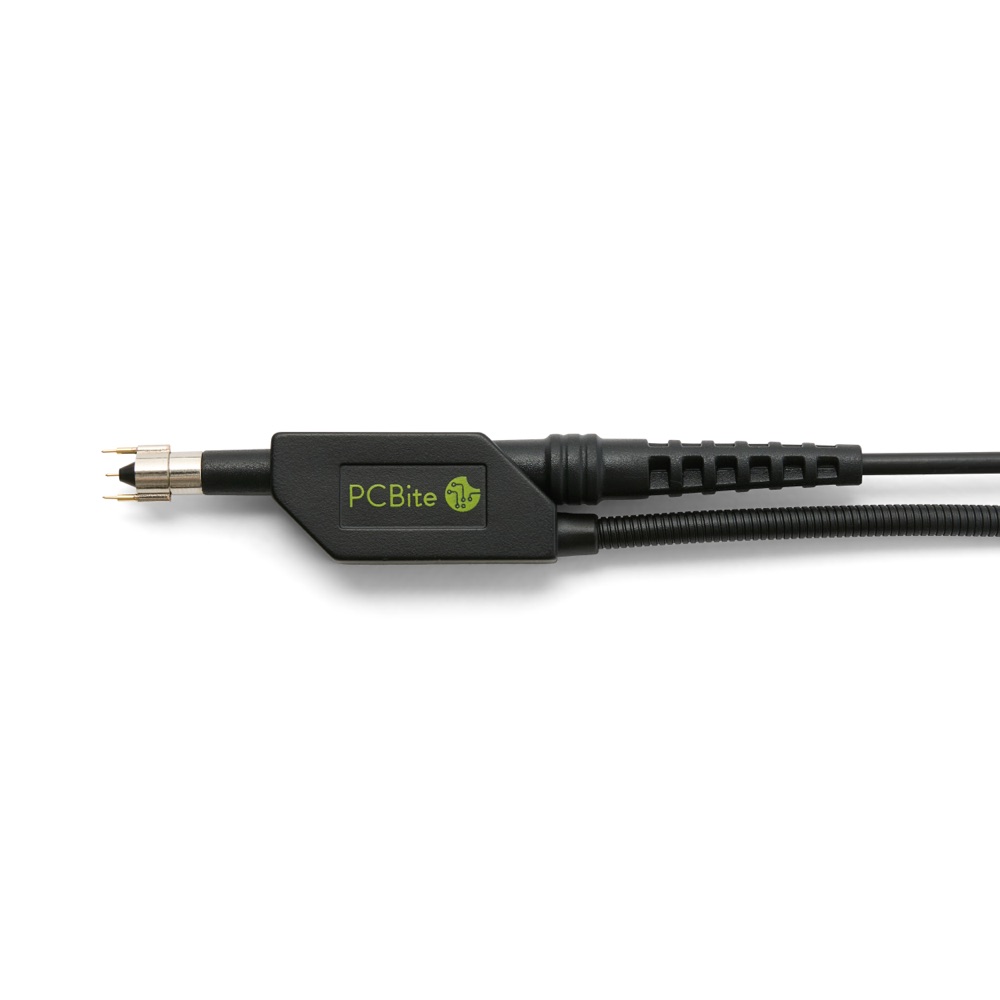

The SQG60-DC is a 6 GHz DC-coupled, low-impedance (333 ohm) 10:1 passive probe for instruments with a 50 ohm input, supporting data rates above 12 Gbps. The top model of the Sensepeek SQG series of high-frequency handsfree probes, it mounts on the PCBite base plate for stable handsfree measurements and is insulated for handheld use. Supplied in a storage case.

Part number: PCBITE-7013

Files and media

What's In The Box

  • 1x SQG60-DC probe with spring tipped test needle
  • 1x SQ probe holder for handsfree measurement
  • 1x Set of colour-coded cable holders (4 colours)
  • 1x Dual ground spring (handsfree, rated bandwidth)
  • 1x Probe tip protection
  • 1x Extra test needle
  • 1x SMA wrench (no torque control)
  • 1x Storage case

Specifications

Part numberPCBITE-7013
Bandwidth6.0 GHz
CouplingDC
Attenuation10:1 passive
Instrument input impedance50 ohm
Probe tip impedance333 ohm
Tip capacitance< 0.69 pF
Usable data rate> 12 Gbps
Max continuous voltage13 V
EAN7350145660519
