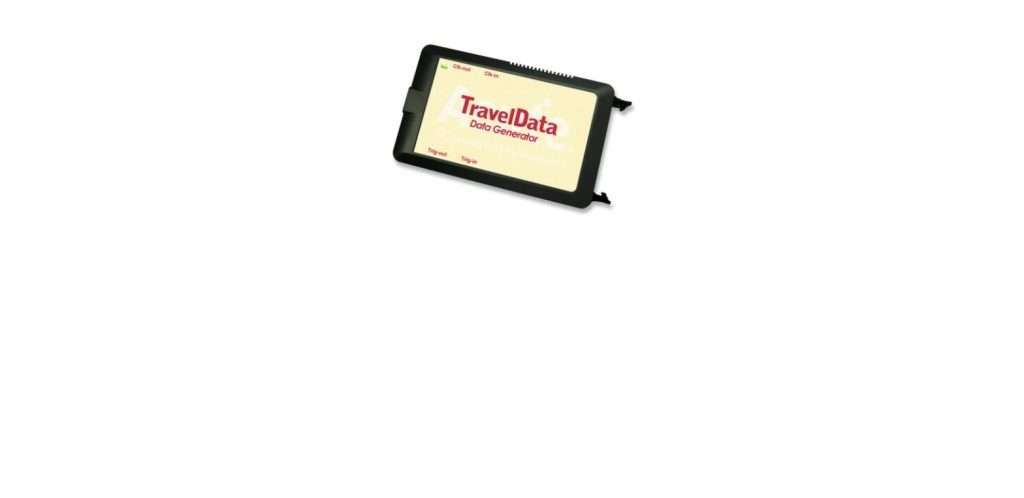

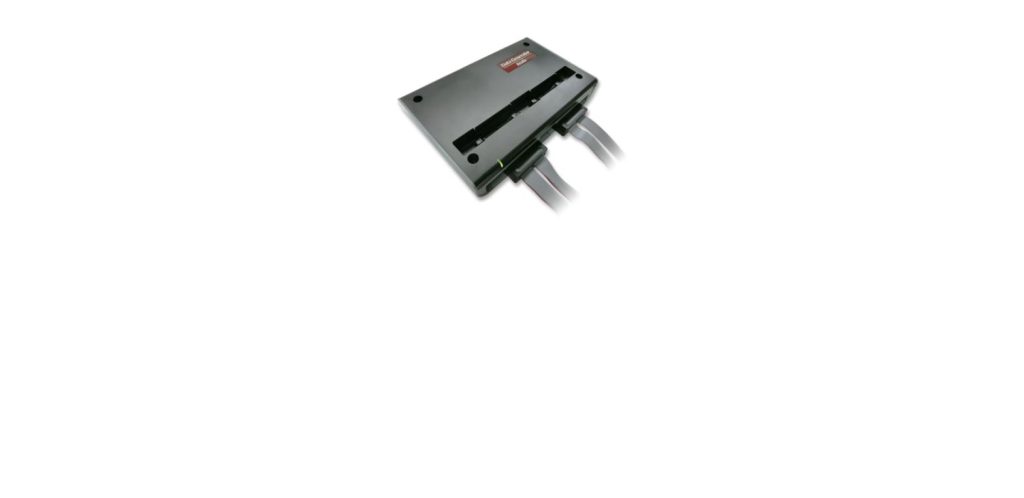

Acute Technology products include TravelLogic logic analyzers, TravelData data generators, TravelScope digital storage oscilloscopes, ADP series Hi-voltage differential probes and TravelBus 2 in 1 Analyzer (Protocol & Logic).

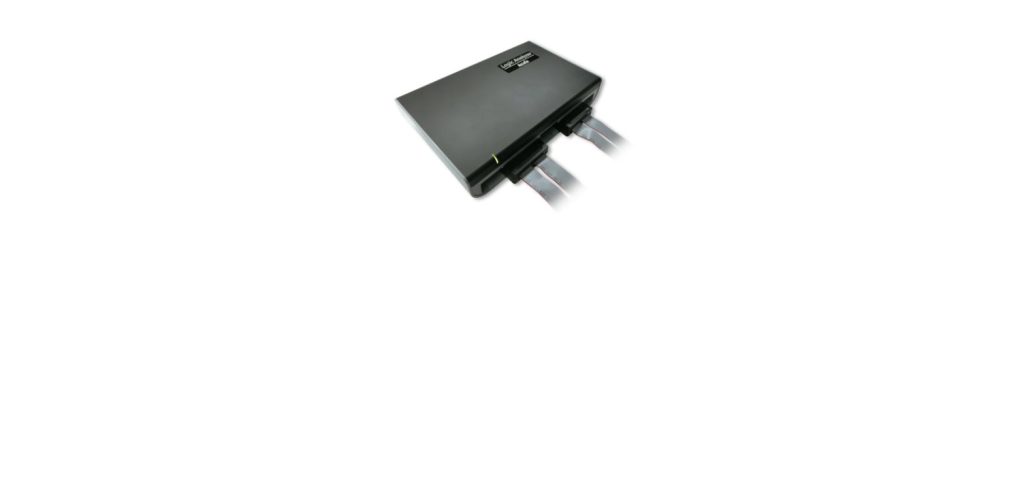

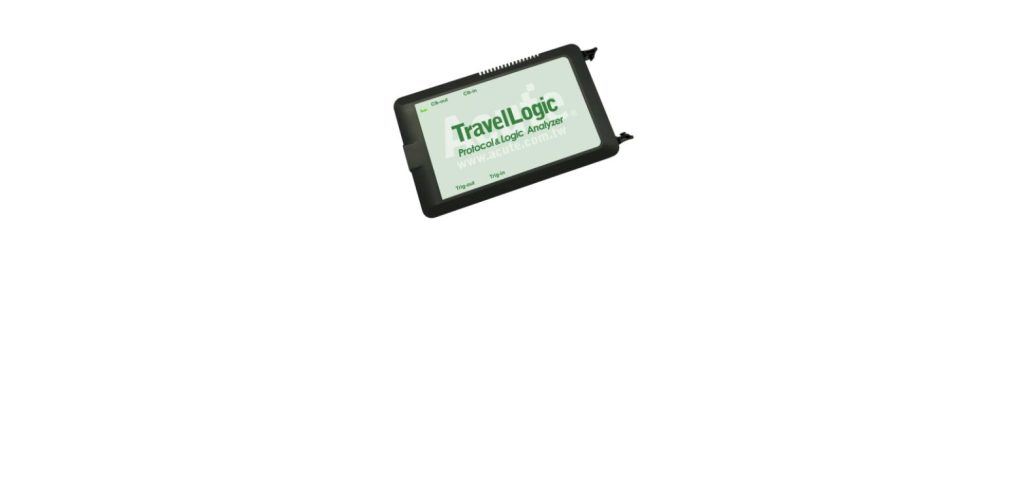

The TravelLogic has 2GHz timing analysis, many bus triggers including SD3.0/eMMC4.5 and nearly 90 free bus decodes, also able to stack with many standalone DSOs to form as an MSO.

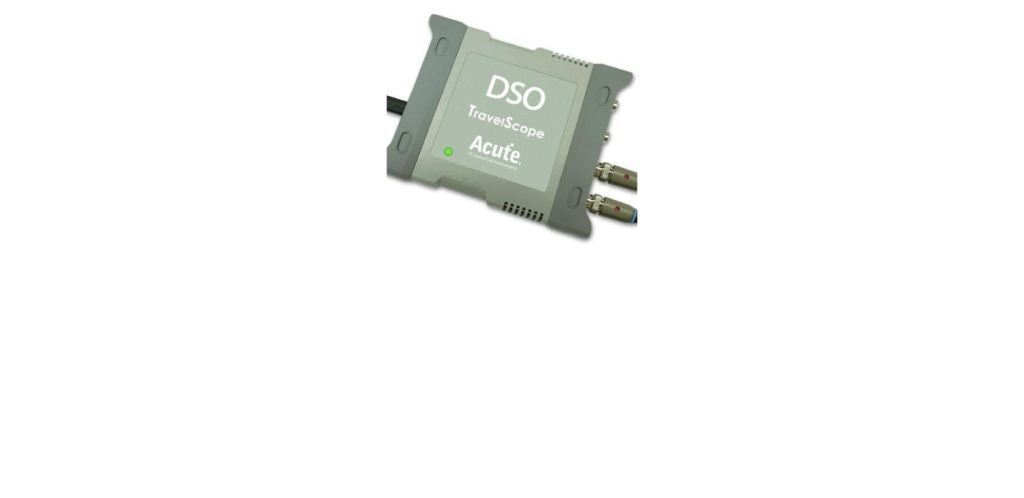

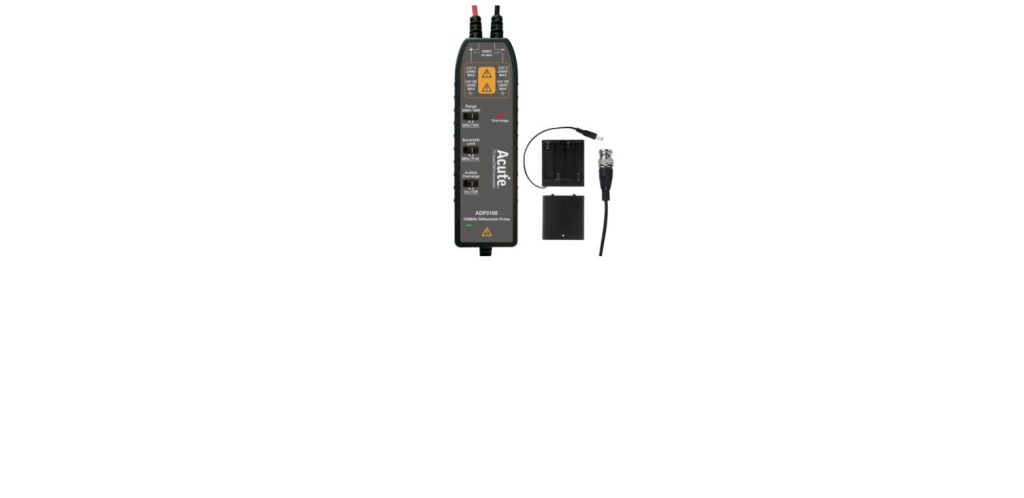

The TravelScope series DSO has 1GS/s S/R and 200MHz bandwidth, 128MS memory, 16bits high vertical resolution. The ADP1025 differential probe has 25MHz bandwidth, +/-700V working range and 2,500V impulse withstand.

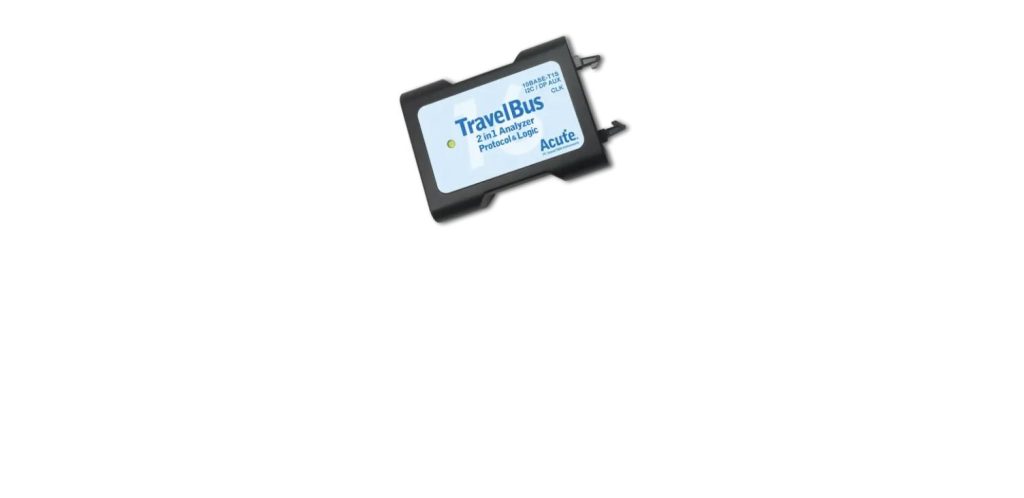

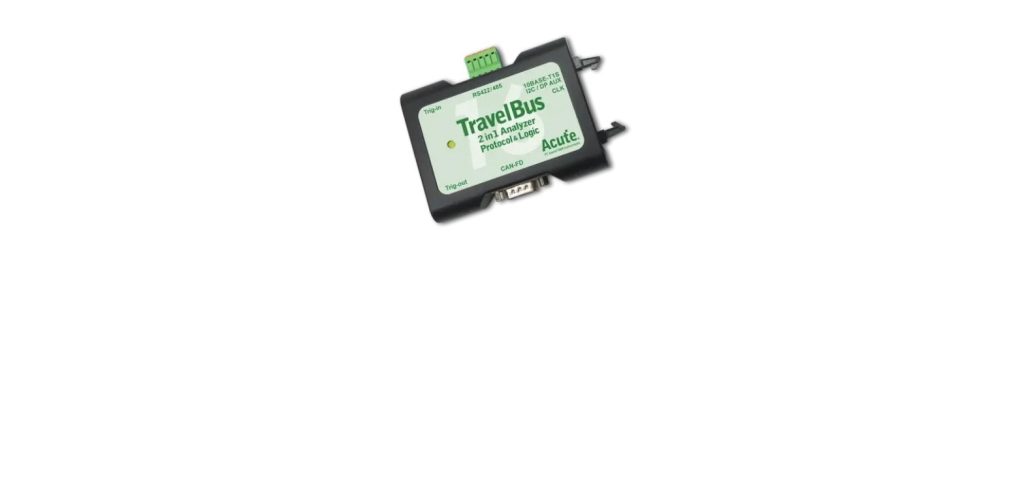

The TravelBus is USB3.0 interfaced protocol analyzer and logic analyzer; it has I2C/DP_AUX port with Schmitt trigger, differential CAN-FD, RS485/RS422, ProfiBus ports, another example of high quality test & measurement instrument made by Acute.
Protocol Analyzer I : BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SPI, UART (RS232), USB PD 3.0
Protocol Analyzer II : DALI, Mini/Micro LED, Profibus, SMBus, USB1.1, …
Protocol Analyzer III : eSPI, MII, RGMII, RMII, …
Bus Decode : CAN 2.0B/CAN FD, DP_Aux, eMMC 4.5, eSPI, I2C, I2S, MIPI DSI LP, MIPI I3C 1.1, NAND Flash, Profibus, SD 3.0 (SDIO 2.0), SPI, UART (RS232), … 100+
Protocol Decode: CAN FD, DALI2.0, DP_Aux, I²C, I²S, LIN2.2, PMBus, PWM, SMBus, SPI, MIPI I3C 1.1, UART, USB PD 3, … (70+ decodes)
Module I: I²C, RS232, SPI
Module II: HID over I²C, I²S, LIN2.2, MDIO, PMBus, SMBus, USB1.1
Module III: BiSS-C, CAN2.0B, CAN-FD, DALI2.0, Modbus, Profibus, RS422, RS485, USB PD 3, …
• Differential channels: 2 (CAN2.0B/CAN-FD), 4 (RS422/485)

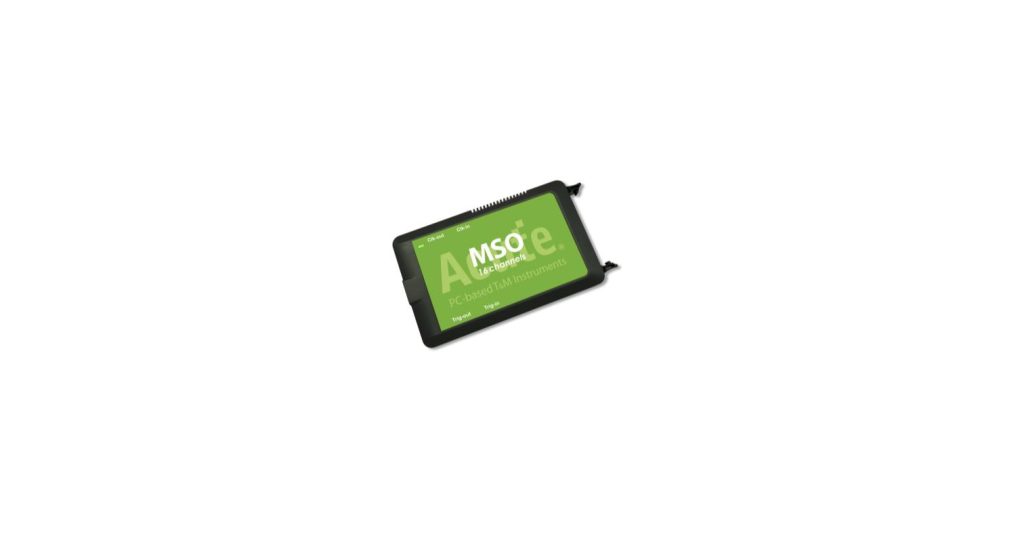

• Stackable with Acute TravelScope DSO to form an MSO
• Isolated Ground: CAN2.0B/CAN-FD, RS485 (Safety Isolation >1000Vrms)
To learn more, call us
Acute is a provider of high quality, reasonably priced development tools for engineers all over the world.
Founded in Taiwan in 1996, Acute Technology makes PC-based test and measurement instruments including TravelLogic logic analyzers, TravelData exercisers, TravelScope digital storage oscilloscopes, ADP series Hi-voltage differential probes and TravelBus 2 in 1 Analyzer (Protocol & Logic).
The TravelLogic has 2GHz timing analysis, many bus triggers including SD3.0/eMMC4.5 and nearly 90 free bus decodes, also able to stack with many standalone DSOs to form as an MSO.
The TravelScope series DSO has 1GS/s S/R and 200MHz bandwidth, 128MS memory, 16bits high vertical resolution. The ADP1025 differential probe has 25MHz bandwidth, +/-700V working range and 2,500V impulse withstand.
The TravelBus is USB3.0 interfaced protocol analyzer and logic analyzer; it has I2C/DP_AUX port with Schmitt trigger, differential CAN-FD, RS485/RS422, ProfiBus ports, another example of high quality test & measurement instrument made by Acute.
